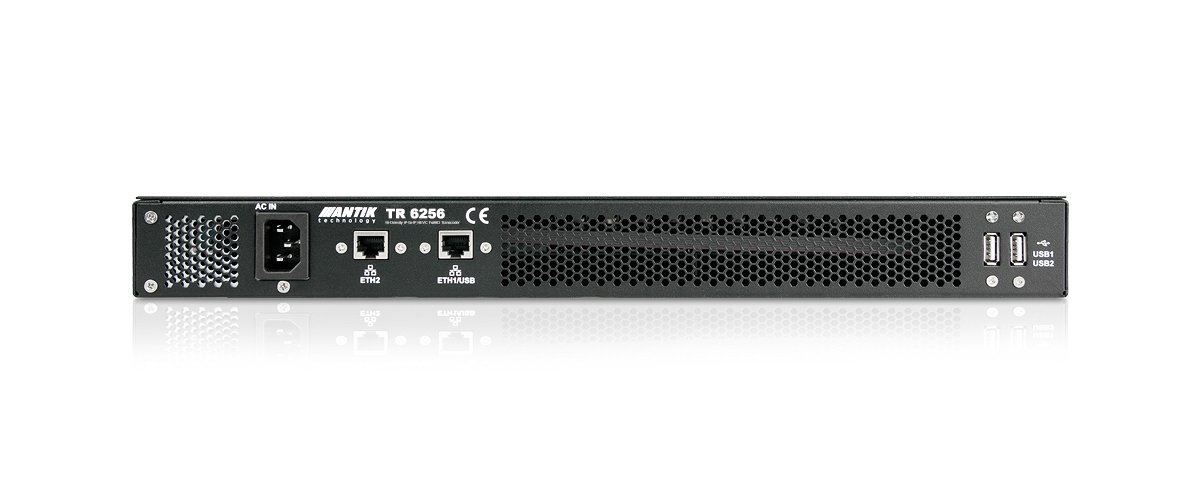

ANTIK TR 6265 Transcoder HiDensity IP-to-IP FullHD Transcoder

ANTIK TR 6265 Transcoder

HiDensity IP-to-IP FullHD Transcoder

New ANTIK Hi-Density HW Transcoder is great for telco-grade IP-to-IP FUllHD H.265 transcoding for all operators and OTT providers scenarios.

KEY FEATURES

• up to 24 chanels/1U unit
• SoC HW transcoding system with very low power consumption
• MPEG2
• MPEG4
• H.264/AVC
• AVS

Video Encoding Specification

• H.265 MP@level 5 main tier and H.264BP/MP/HP@level 4.2 video encoding
• maximum 12 x 1080p @ 30 fps or 24 x 720p @ 30 fps encoding
• VBR or CBR mode
• Low-delay endocing
• Encoding of multiple ROIs

Video Decoding Specification

• H.265/HEVC (Main/Main 10 profile @ level 5.1)
• H.264/AVC (BP/MP/HP @ level 5.1)
• MPEG 4/2/1, VC - 1/WMV9, AVS, REAL 8/9/10, DivX 3/4/5/6 and some other legacy codecs

Transcoder TR 6265 interface

Transcoder TR 6265 task configuration

Detailed specification

ITU-T H.265 Main Profile @ Level 5 main-tier encoding

• Motion compensation with 1/2 or 1/4 pixel precision
• Three prediction unit (PU) types (32 x 32, 16 x 16, 8 x 8) for intra-frame prediction
• Two PU types (16 x 16, 8 x 8) for intra-frame prediction
• Skip mode and merge mode with a maximum of two candidate points to be merged
• Three transmission unit (TU) types (16 x 16, 8 x 8, 4 x 4)
• Context-adaptive binary arithmetic coding (CABAC) entropy encoding
• De-blocking (DB) filtering
• Sample adaptive offset (SAO)
• Inter-Precessor Communications Module (IPCM) encoding

ITU-T H. 264 High Profile/Main Profile/Baseline Profile @ Level 4.2 encoding

• Motion compensation with 1/2 or 1/4 pixel precision
• Two sub-block types (16 x 16 and 8 x 8) for inter-frame prediction
• Prediction modes of intra 4 x 4, intra 8 x 8 and intra 16 x 16
• Trans 4 x 4 and trans 8 x 8
• CABAC and context-adaptive variable-length coding (CAVLC) entropy encoding
• DB filtering
• IPCM encoding

Support for multiple input image formats

• Semi-planar YCbCr4:2:0
• Planar YCbCr4:2:0
• Package YUYV

1080p @ 30 fps H.265/H.264 multi-stream encoding Configurable image resolutions

• Minimum image resolution: 128 x 128 (H.265) or 256 x 128 (H.264)
• Maximum image resolution: 1920 x 2048
• Image width or height step: 2

Region of interest (ROI) encoding

• Encoding of at most eight ROIs
• Separate enable/disable control of the encoding function for each ROI


Constant bit rate (CBR) mode, variable bit rate (VBR) mode and FIXQP mode
Output bit rate ranging from 2 kbit/s to 100 Mbit/s
