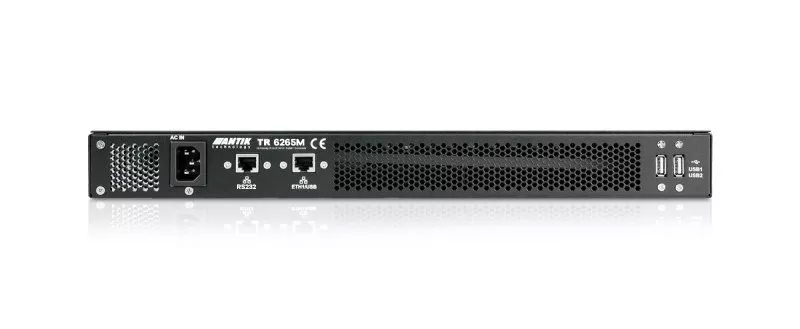

ANTIK TR 6265M Transcoder+Streamer

ANTIK TR 6265M Transcoder+Streamer

IP-to-IP FullHD HEVC Adaptive Bitrate Transcoder+HLS/MPEG# Streamer

New ANTIK Hi-Density HW Transcoder is great for telco-grade IP-to-IP FullHD adaptive bitrate H.265 transcoding with MPEG# streaming output

ANTIK Technology

KEY FEATURES

  • up to 24 chanels/1U unit
  • SoC HW transcoding system with very low power consumption
  • MPEG2
  • MPEG4
  • H.264/AVC
  • AVS

Video Encoding Specification

  • H.265 MP@level 5 main tier and H.264BP/MP/HP@level 4.2 video encoding
  • maximum 12 x 1080p @ 30 fps or 24 x 720p @ 30 fps encoding
  • VBR or CBR mode
  • Low-delay endocing
  • Encoding of multiple ROIs

Video Decoding Specification

  • H.265/HEVC (Main/Main 10 profile @ level 5.1)
  • H.264/AVC (BP/MP/HP @ level 5.1)
  • MPEG 4/2/1, VC - 1/WMV9, AVS, REAL 8/9/10, DivX 3/4/5/6 and some other legacy codecs

Output

  • adaptive streaming (MPEG# + HLS)
  • video codec: H.264 or H.265
  • audio codec: AAC HE (multi-language)
  • capacity: 24 streams in total (6 channels with 4 profiles each or 8 channels with 3 profiles each or 12 channels with 2 profiles each)
  • DRM Support (Widevine and FairPlay)

Intputs

  • input: UDP/RTP/HTTP Single Program Transport Stream (SPTS)
  • automatic input stream analysis and selection of profiles (based on pre-defined template)

Transcoder TR 6265M interface

ANTIK Technology

Transcoder TR 6265M task configuration

ANTIK Technology

Detailed specification

ANTIK Technology

ITU-T H.265 Main Profile @ Level 5 main-tier encoding

  • Motion compensation with 1/2 or 1/4 pixel precision
  • Three prediction unit (PU) types (32 x 32, 16 x 16, 8 x 8) for intra-frame prediction
  • Two PU types (16 x 16, 8 x 8) for intra-frame prediction
  • Skip mode and merge mode with a maximum of two candidate points to be merged
  • Three transmission unit (TU) types (16 x 16, 8 x 8, 4 x 4)
  • Context-adaptive binary arithmetic coding (CABAC) entropy encoding
  • De-blocking (DB) filtering
  • Sample adaptive offset (SAO)
  • Inter-Precessor Communications Module (IPCM) encoding



ITU-T H. 264 High Profile/Main Profile/Baseline Profile @ Level 4.2 encoding

  • Motion compensation with 1/2 or 1/4 pixel precision
  • Two sub-block types (16 x 16 and 8 x 8) for inter-frame prediction
  • Prediction modes of intra 4 x 4, intra 8 x 8 and intra 16 x 16
  • Trans 4 x 4 and trans 8 x 8
  • CABAC and context-adaptive variable-length coding (CAVLC) entropy encoding
  • DB filtering
  • IPCM encoding



Support for multiple input image formats

  • Semi-planar YCbCr4:2:0
  • Planar YCbCr4:2:0
  • Package YUYV

ANTIK Technology

1080p @ 30 fps H.265/H.264 multi-stream encoding Configurable image resolutions

  • Minimum image resolution: 128 x 128 (H.265) or 256 x 128 (H.264)
  • Maximum image resolution: 1920 x 2048
  • Image width or height step: 2



Region of interest (ROI) encoding

  • Encoding of at most eight ROIs
  • Separate enable/disable control of the encoding function for each ROI


Constant bit rate (CBR) mode, variable bit rate (VBR) mode and FIXQP mode
Output bit rate ranging from 2 kbit/s to 100 Mbit/s
