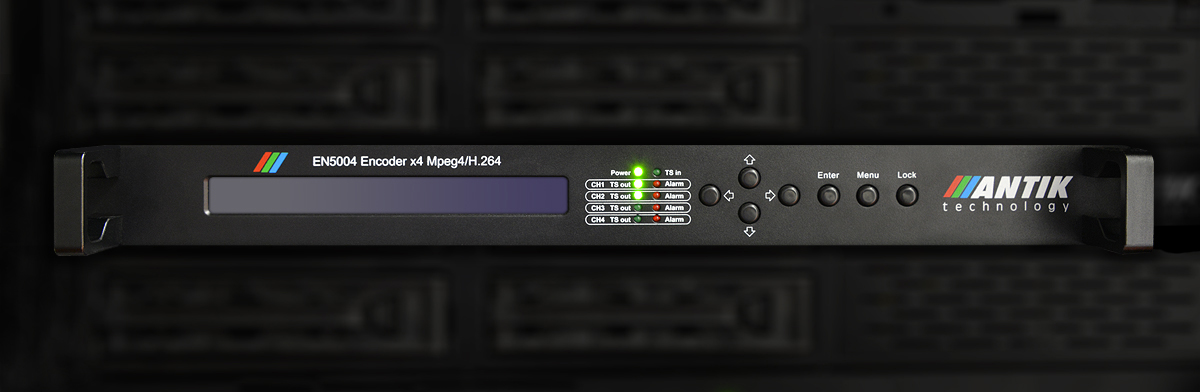

Antik Encoder EN 5004/5008

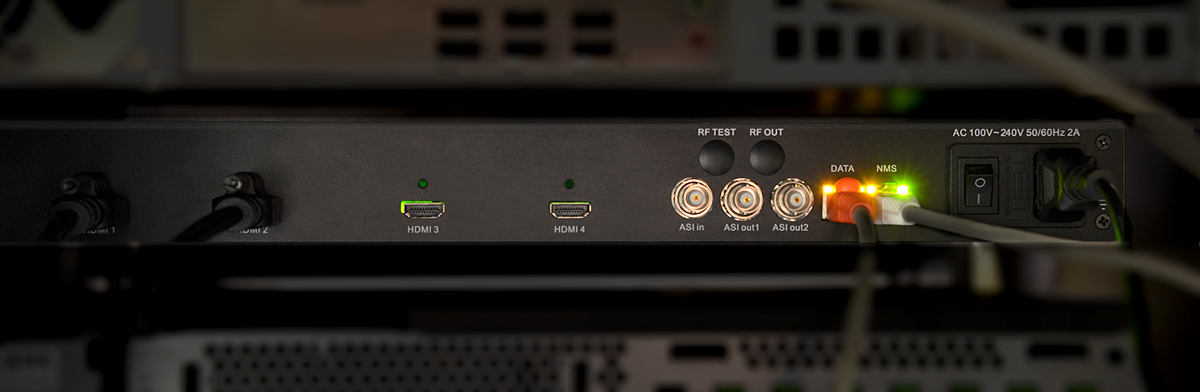

The Antik Encoder EN 5004 / 5008 - 4 / 8 in 1 MPEG-4 AVC/H.264 HD encoder is a professional HD audio & video encoding and multiplexing device with a powerful functionality. It has 4 / 8 channels HDMI (or SDI) input interfaces, supporting the MPEG4 AVC/H.264 High Profile code format & main Profile code format and 1 ASI input. This device can simultaneously encode 4 / 8 channel HD programs; moreover, it has an ASI input and can multiplex the input TS with the 4 encoded program to generate the ASI and the IP output. Also, the PSI/SI information can be inserted into the MPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in a variety of digital distribution systems such as the CATV digital head-end, the satellite and the terrestrial digital TV, etc.
KEY FEATURES
- Support AVC/H.264 High Profile Level 4.0 video encoding, Advanced video pretreatment algorithm
- Support MPEG1 Layer 2, HE-AAC (V2) or LC-AAC audio encoding (Optional)
- 4/8 channel HDMI (or SDI) inputs and 1 ASI input with Mux
- Support PSI/SI editing and inserting
- Support VBR or CBR video bitrate mode
- Support 720P, 1080I, 1080P HD video format
- Support ASI output MPTS or 4 SPTS
- Support IP output (UDP) MPTS and 4 channel SPTS, unicast/multicast
- Support IP null packet filter
- Support PID filter and transparent transport
- Real- time effective output bit-rate monitoring
- Support update device through NMS port

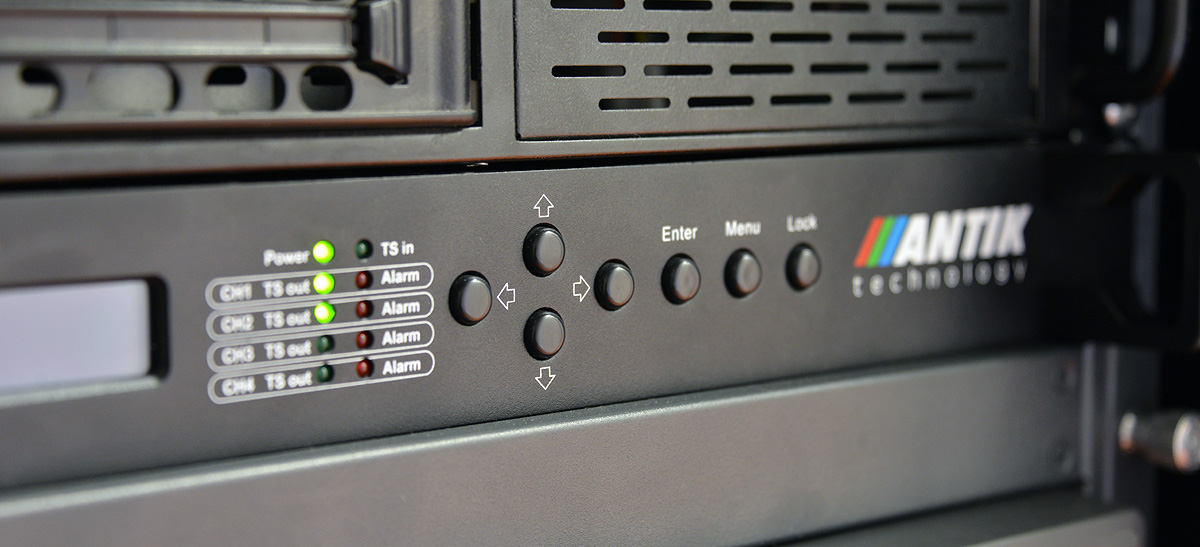

- Support LCD / keyboard operating, and network management (SNMP)
DATASHEET_Antik EN 5004 Encoder
