ANTIK MX 5308 Receiver
8 x Tuner DVB-T/T2/C/S2/ISDB-T
The MX-5308 is a high-density, modular and CI decryption professional TS processor equipped with 8 independent tuners, which can be any of the DVB-T/ T2, DVB-S2/S, DVB-C, DTMB, ISDB-T or ATSC type. It supports a wide range of application by combining 8 tuners processing capability with industry standard outputs including ASI and TS/ IP. The MX-5308 has 8 DVB common interface slots capable of working with the most of the well-known CAS in the market to de-crypt multiple pay TV services.

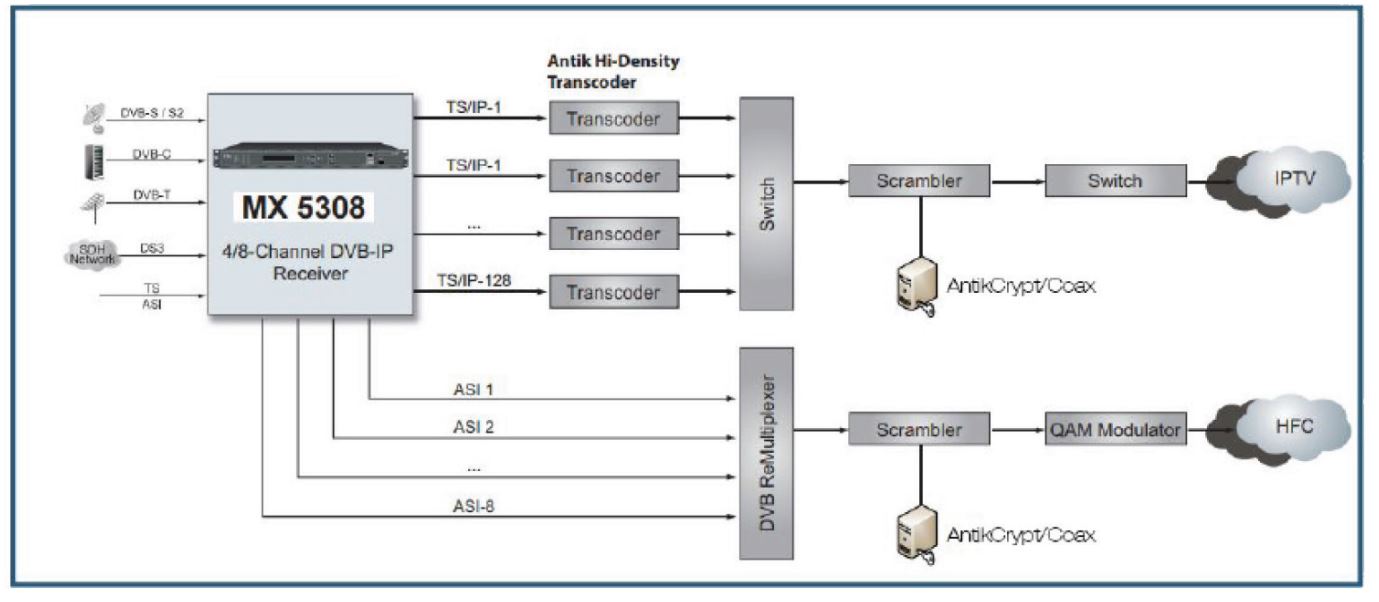

The MX-5308 provides operators with an ideal solution for multi receiving, remultiplexing, descrambling and TS over IP operations, the compact 8 tuners and the powerful 8 CI decryption design which makes it one of the most competitive products in the head-end market.
KEY FEATURES
- 8 x Tuners Input, Supports variety of input options DVB-T2/T/S2/S/C/DTMB/ATSC/ISDB-T
- Supports DVB-S2 Input Stream Identifier (ISI, optional) and DVB-T2 Multi PLP and SFN MIP pass through
- Built-in TS re-multiplexer receives from ASI, CI Slot1 to CI Slot8 and TS/IP inputs
- 8×DVB-CI Slots, multi-program decryption, BISS-1 and BISS-E decryption
- 8xASI output the transport stream from CI Slot1 to CI Slot8 or BISS decryption
- 1xchannel full duplex TS over IP or 9xchannels IP out without IP input
- Remote Control and Supervision by SNMP v2, HTTP WEB and Proprietary HDMS software
- On Site software update through IP or USB
- RSSI, received signal strength, Eb/N0, C/N and BER monitoring
- Redundant power supply
DVB-S/S2 Tuner Input (ISI Factory Optional)
- Connector Type 8×F type female 75Ω for Input
- Input Frequency Range 950 ~ 2150MHz
- Input Level -25 ~ -65dBm
- Symbol Rate 2 ~ 45MBaud
-
Roll-off Factor
- DVB-S QPSK: 0.35
- DVB-S2 8PSK: 0.35, 0.25, 0.2
-
FEC Code Rate
- DVB-S QPSK: 1/2, 2/3, 3/4, 5/6, 7/8
- DVB-S2 QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/10
- DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
- LNB Polarity Selection Voltage 0, 13V,18V selectable
- LNB Band Selection Tone 0/22KHz selectable
- Satellite Selection Command DiSEqC 1.0
- ISI ID 1 ~ 255 user configurable
DVB-C Tuner Input
- Connector Type 8×F type female 75Ω for Input
- Input Frequency Range 51 ~ 862MHz
- Input Level 51~75dBμV
- Symbol Rate 1~7MBaud (ITU J.83 Annex A)
- Constellation 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
- Bandwidth 6MHz, 7MHz, 8MHz
- Input Return Loss 7dB (typ.)
DVB-T/T2 Tuner Input
- Connector Type 8×F type female 75Ω for Input
- Input Frequency 104 ~ 862MHz (VHF/UHF)
- Input Level -20 ~ -70dBm
-
Constellation
- DVB-T: QPSK, 16QAM, 64QAM
- DVB-T2: QPSK, 16QAM, 64QAM, 256QAM
- Bandwidth 6MHz, 7MHz, 8MHz
-
FFT Mode
- DVB-T: 2K, 8K
- DVB-T2: 1K, 2K, 4K, 8K, 16K, 32K
-
Guarding Interval
- DVB-T: 1/4, 1/8, 1/16, 1/32
- DVB-T2: 1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128
-
FEC Code Rate
- DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8
- DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
- Input Return Loss 7dB (typ.)
DTMB Tuner Input
- Connector Type 8×F type female 75Ω for Input
- Input Frequency Range 46.5~866MHz
- Input Level -87~-29dBm
- Symbol Rate 7.56MBaud
- Bandwidth 6MHz/7MHz/8MHz
- Constellation 4QAM-NR,4QAM,16QA-M,32QAM, 64QAM
- Guard Interval PN420, PN595, PN945
- Roll-off Factor 0.05
- Interleaving Depth 240,720
- FEC Code Rate 0.4, 0.6, 0.8
ATSC Tuner Input
- Connector Type 8×F type female 75Ω for Input
- Input Frequency Range 54~864MHz
- Input Level -75~-7dBm(ATSC 8VSB)
- Symbol Rate 10.762MBaud
- Constellation 8VSB
- Roll-off Factor 0.115
- Bandwidth 6MHz
TS Processing
- TS Input Management Demux and Remux among ASI, TS/IP and CI Inputs
- TS Output Management Demux and Remux for ASI output
- Service and PID Management Service and PID level for Remux, filtering and remapping
- PSI/SI PSI/SI table regeneration, NIT and SDT edition, LCN Edition and Re-generation
- Descrambler DVB Common Scrambling Algorithm (CSA)
- BISS Mode BISS-1, BISS-E
- Common Interface 8 x PCMCIA slots, compatible with major CA CAMs in the market
ASI Output
- Connector Type 9 independence BNC female, 75Ω
- Standard DVB-ASI, EN50083-9
- Output Bit Rate ≤ 200Mb/s
- TS Processing 8xASI out pass through the TS from CI 1 to CI8, 1xASI Out from Remux
ASI Input
- Connector Type 1×BNC female, 75Ω
- Standard DVB-ASI, EN50083-9
- Input Bit Rate ≤100Mb/s
- Connector Type 1×BNC female, 75Ω
TS over IP
-
Connector Type 1×RJ-45, 100/1000
Base-T Effective Bit Rate 200Mb/s for 9
channel IP out without IP in and IP channel 1 to IP channel 8 just pass through the TS from CI or BISS, the IP channel 9 can output the TS from ASI in or Remux. 80Mb/s for full duplex 1 channel -
Protocol UDP / RTP, Multicast / Unicast,
IGMPv3, ARP
Alarm
- Connector Type 1×D-sub 9 male
- Switching Condition User Defined
Control & Monitoring
- Connector Type 1×RJ-45, 10/100 Base-T, for equipment IP Control
- Remote Control SNMP, HT T P (Web Interface), Proprietary HDMS (Headend Device Management System)
- Local Control LCD display and 6-key keypad
- Serial Port 1×RS-232 D-sub female, for debug use only
- Equipment Upgrade Embedded FTP loader,Telnet and http
Physical
- Dimension 44mm x 255mm x 430mm
- Weight 3.5kg
- Power Supply AC 90V ~ 250V, 50/60Hz
- Power Consumption 30W (exclusive of LNB power)
- Operating temperature 0~45°C
- Storage temperature -10~60°C
- Operating Humidity 10~90%, non-con- densed
Certification
-
EMC:
- EN 55024:1998 + A1:2001 + A2:2003,
- EN 55022:2006+A1:2007,
- EN 61000-3-2:2006,
- EN 61000-3-3:2008
- FCC: Part 15 Class B
- LVD: EN 60950-1:2006 + A11:2009
DATASHEET_Antik MX 5308 Receiver
