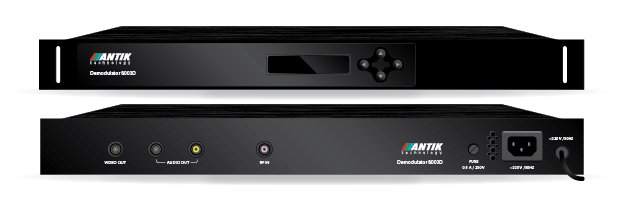

Antik DM 8000D Demodulator
Antik Demodulator DM 8000D is CATV Agile Demodulator, which is applicable for TV signal ranged from 47~860 MHz. The equipment adopts I2C Fieldbus Control technology to demodulate TV signals of different frequencies. Two-digit LED display indicates the receiving channel. Decoded audio and video signal could be transmitted to modulator and other equipment.
General Info
- Input frequency 48~870MHz
- Input Level 60~85dBμV
- Input Connector 75Ω
- Noise Figure 10dB
- Frequency Fine Tuning Range ±4MHz
- Frequency Fine Tuning Step 250 KHz
- Video Output Level 0.7~1.3V(p.p)adjustable
- Video Output Impedance 75Ω
- Frequency Response ±2dB
- Differential Gain ≤5%
- Differential Phase 3°
- Audio Output Level 0.5~2.5Vp-p (600Ω, imbalance single-way output) adjustable
- Audio Harmonic Distortion ≤1%
- Audio S/N Ratio 60dB
- Amplitude Frequency Response ±1.5dB (40Hz~15KHz)
General Working Conditions
- Temperature Range 5~40°C
- Relative Humidity ≤ 85 %
- Atmospheric Pressure 86~106 kpa
Power Supply
- Voltage AC 220V ± 10%
- Frequency 50Hz±2Hz
- Power Consumption ≤10W
- Dimensions 483mm × 230mm × 45mm
- Weight 2.8 kg
DATASHEET_Antik DM 8000 Demodulator
