Antik MR 9200 / MR 9400 Blade Multireceiver T/T2/C/S2/ISDB-T



Professional Multireceiver



Antiktech

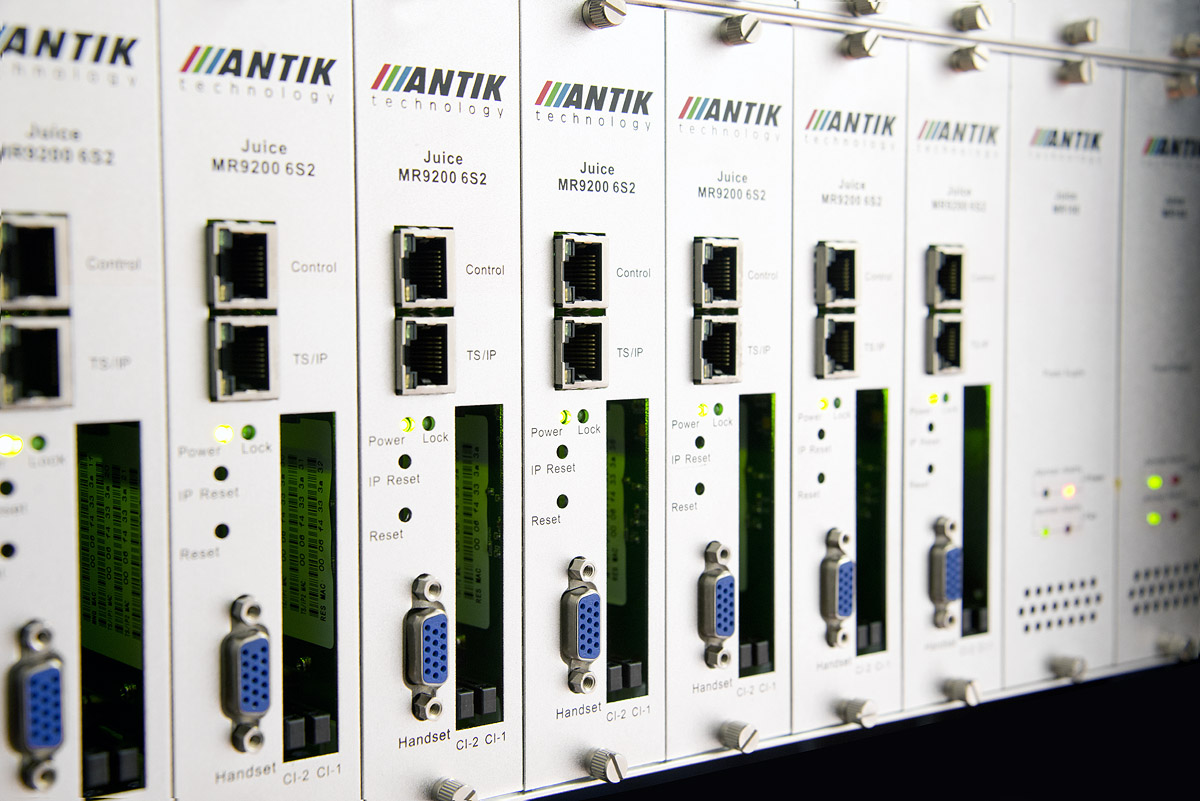

The Antik MR 9000 is a compact modular digital TV headend that includes the professional MPEG-2 and MPEG-4 AVC/H.264 SD/HD IRD, MPEG-2 and MPEG-4 AVC/H.264 SD/HD Encoder/Transcoder, Re-Multiplexer, QAM/COFDM Trans-Modulator, Dual Channel Analog Modulator, DVB Scrambler and so on. Within a 4U×19” chassis, it provides 8 slots for any type of modules and 2 redundant power supply units. Thanks for its flexibility and high density, the Antik´s MR 9000 offers operators an advanced headend architectures in the marketplace for delivering analog and digital broadcast services to their subscribers. Coming with more new modules, the Antik MR 9000 is most suitable for a future multiple network architectures: streaming and multiplexing of digital content over IP based networks and conversion of digital content for analog networks.

SPECIFICATIONS

  • DVB-S2/S, DVB-S, DVB-C, DVB-T2/T IRD modules with CI
  • DVB-S/S2T/T2 to DVB-C QAM and DVB-T COFDM trans-modulator module
  • MPEG-2, H.264 HD/SD encoder and trans-coder module
  • 8 Way re-multiplexer module
  • DVB Simulcrypt, BISS-1, BISS-E scrambler module
  • Rich interface with ASI, IP, SDI, YPbPr, CVBS, XLR
  • Web, SNMP Remote Control or handheld programmer unit local control

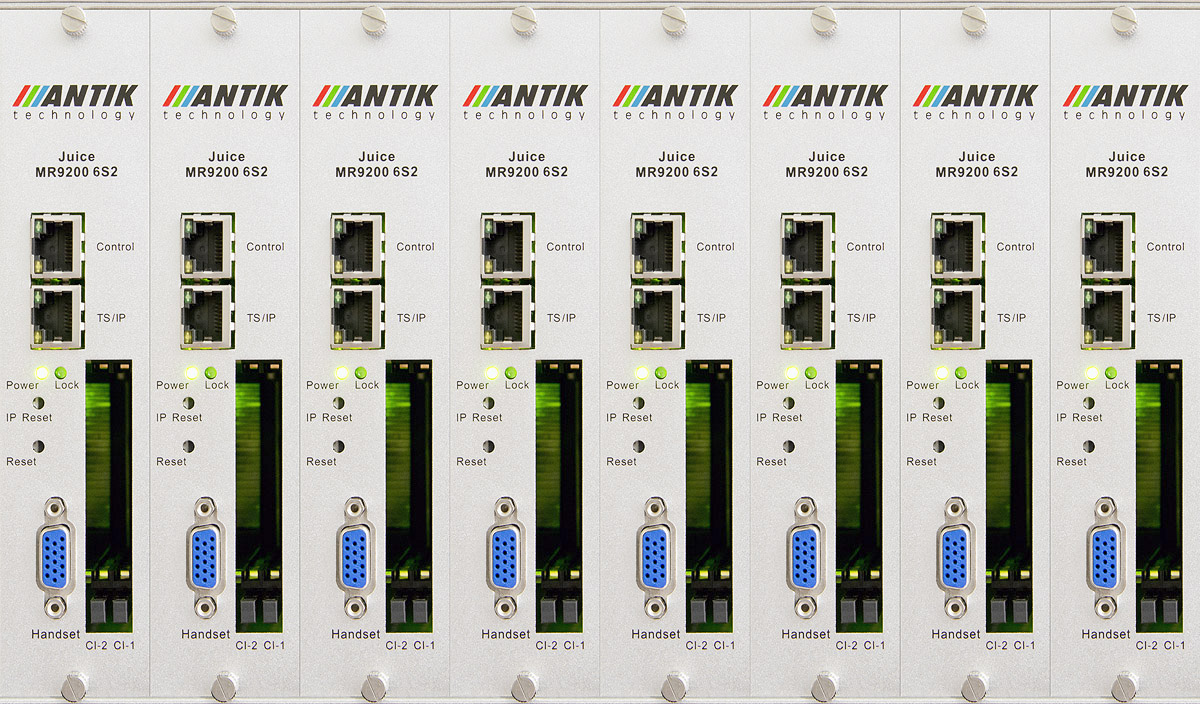

  • 4RU 19”chassis compact modular design, supporting up to 8 modules
  • Functional module hot-swappable
  • Redundant power supply
  • Intelligent cooling system with temperature
  • Stand-alone function of each module
  • Cost-saving by backward compatible with new modules
  • On site software update through IP

Antik MR 9000 Main Chassis

  • Standard 8 slots for modules (could be extended to 9 slots by removing one power supply unit)
  • Hot-swappable power supply unit
  • Intelligent cooling system
  • Wall mount or rack mount
  • Backward compatible with new modules
  • Power Supply: AC 100V-260V, 50-60Hz
  • Dimension: L=340mm, W=483mm, H=178mm (4U)

MR 100 P Power supply

  • Hot-backup power supply unit
  • Power Supply: AC 100V-260V, 50-60Hz
  • High reliability & efficiency
  • 150Watts stable output power
  • Dimension 343 110 x 47.5 mm
  • 2nd Power supply only as backup


Antiktech

 Antiktech



Antik MR 9200 Series

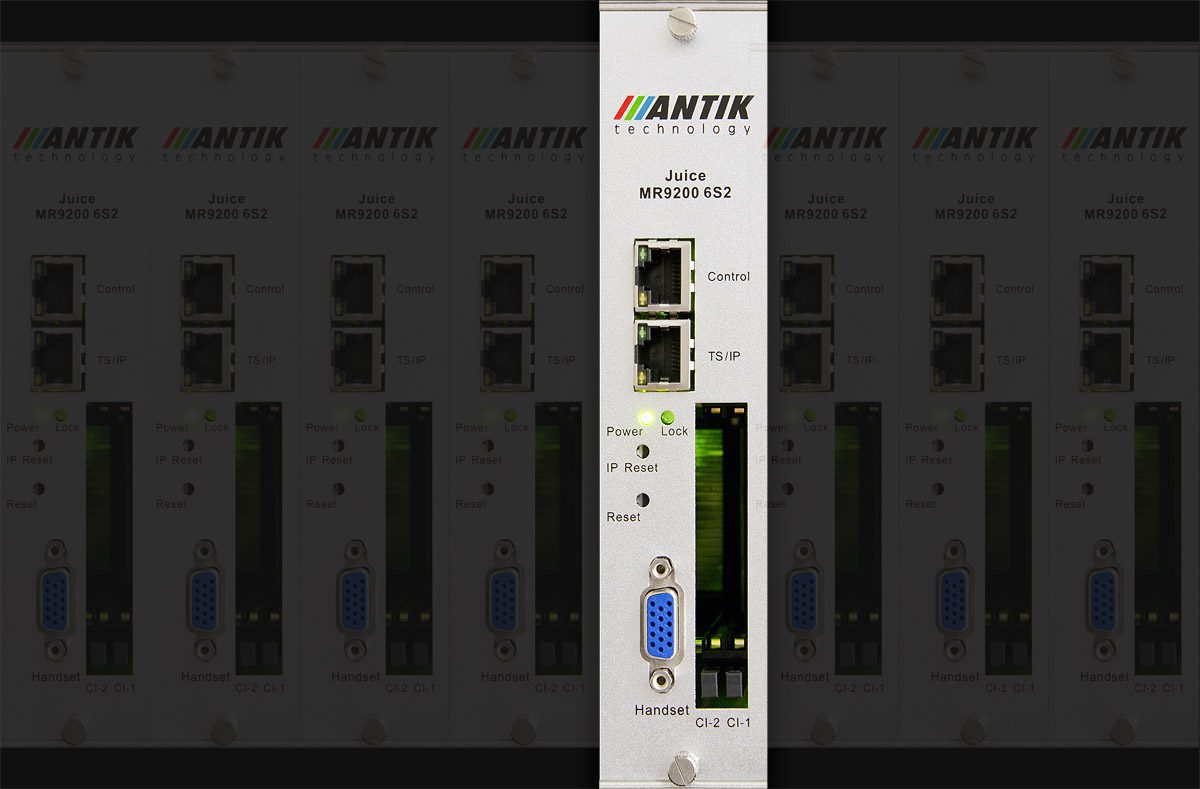

Professional MPEG-2 SD IRD and Processor Module



Antik MR 9200 DVB-S/S2 Tuner Input

  • Connector Type 1 x F type female 75Ω for Input, 1 x F type female 75Ω for loop through output
  • Input Frequency Range 950~2150MHz
  • Input Level -25~-65dBm
  • Symbol Rates DVB-S QPSK: 5~45MS/s; DVB-S2 8PSK 10~31MS/s
  • Roll-off Factor DVB-S QPSK: 0.35; DVB-S2 8PSK: 0.35, 0.25, 0.2
  • Puncture Rates
    • DVB-S2 8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10
    • DVB-S QPSK: 1/2, 2/3, 3/4, 5/6, 6/7, 7/8
  • LNB Power 0, 13V, 18V selectable
  • 0/22K 0/22KHz selectable



Antik MR 9200 DVB-S Tuner Input

  • Connector Type 1 x F type female 75Ω for Input, 1 x F type female 75Ω for loop through output
  • Input Frequency Range 950~2150MHz
  • Input Level -25~-65dBm
  • Symbol Rates 2~45MS/s
  • Roll off factor 0.35
  • Puncture Rates 1/2, 2/3, 3/4, 5/6, 7/8
  • LNB Power 0, 13V, 18V selectable
  • 0/22K 0/22KHz selectable

Antik MR 9200 DVB-C Tuner Input

  • Connector Type 1 x F type female 75Ω for Input, 1 x F type female 75Ω for loop through output
  • Input Frequency Range 48~860MHz
  • Symbol Rates 1~7MS/s (ITU J.83 Annex A)
  • Constellation 64/128/256 QAM
  • Input Level -15~15dBmV
  • Bandwidth 6/7/8MHz
  • Input Return Loss 7dB (typ.)



Antik MR 9200 DVB-T Tuner Input

  • Connector Type 1 x F type female 75Ω for Input, 1 x F type female 75Ω for loop through output
  • Input Frequency Range 174~230MHz (VHF); 470~860MHz (UHF)
  • Input Level -20~-70dBm
  • Constellation QPSK, 16-QAM, 64-QAM
  • Carrier bandwidth 6/7/8 MHz
  • FTT Mode 2K/8K
  • Guard Interval 1/4, 1/8, 1/16, 1/32, off
  • Puncture Rates 1/2, 2/3, 3/4, 5/6, 7/8





Antik MR 9400 Series

Professional Multi-format HD/SD IRD and Processor Module



Antik MR 9400 DVB-S/S2 Tuner Input

  • Connector Type 1 x F type female 75Ω for Input, 1 x F type female 75Ω for loop through output
  • Input Frequency Range 950~2150MHz
  • Input Level -25~-65dBm
  • Symbol Rates DVB-S QPSK: 5~45MS/s; DVB-S2 8PSK 10~31MS/s
  • Roll-off Factor DVB-S QPSK: 0.35; DVB-S2 8PSK: 0.35, 0.25, 0.2
  • Puncture Rates
    • DVB-S QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10
    • DVB-S QPSK: 1/2, 2/3, 3/4, 5/6, 6/7, 7/8
  • LNB Power 0, 13V, 18V selectable
  • 0/22K 0/22KHz selectable
  • DiSEqC DiSEqC 1.0



Antik MR 9400 DVB-S Tuner Input

  • Connector Type 1 x F type female 75Ω for Input, 1 x F type female 75Ω for loop through output
  • Input Frequency 48~860MHz
  • Input Level 45~ 75dBuV
  • Symbol Rate 1~7MS/s (ITU J.83 Annex A)
  • Constellation 64/128/256QAM
  • Bandwidth 6/7/8MHz
  • Input return loss 7dB (typ.)

Antik MR 9400 DVB-C Tuner Input

  • Connector Type 1 x F type female 75Ω for Input, 1 x F type female 75Ω for loop through output
  • Input Frequency Range 48~860MHz
  • Input Level 45~75dBuV
  • Symbol Rate 1~7MS/s (ITU J.83 Annex A)
  • Constellation 64/128/256 QAM
  • Bandwidth 6/7/8MHz
  • Input Return Loss 7dB (typ.)



Antik MR 9400 DVB-T/T2 Tuner Input

  • Connector Type 1 x F type female 75Ω for Input, 1 x F type female 75Ω for loop through output
  • Input Frequency 104~862MHz (VHF/UHF)
  • Input Level -20 ~ -70dBm (Quasi Error Free, QEF)
  • Constellation
    • DVB-T: QPSK/16-QAM/64-QAM
    • DVB-T2: QPSK, 16QAM, 64QAM, 256QAM
  • Bandwidth 6MHz/7MHz/8MHz
  • FFT mode
    • DVB-T: 2K/8K
    • DVB-T2: 1K, 2K, 4K, 8K, 16K, 32K
  • Guard interval
    • DVB-T: 1/4, 1/8, 1/16, 1/32
    • DVB-T2: 1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128
  • FEC code rate
    • DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8
    • DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
  • Input return loss 7dB (typ.)
