Multiview monitoring room version 5

Software based and cost-effective and high-performance tool for IPTV monitoring

Brief Introduction

• Software based and cost-effective but high-performance IPTV monitoring tool
• Supports a powerful mosaic overview for multiple services
• Supports various alarm detection to ensure QoE and QoS
• Provides a scalable pricing policy for an easy entry and extension
• UDP, RTSP protocols in format TS, RTSP, RTMP, HTTP streaming
• SNMP support

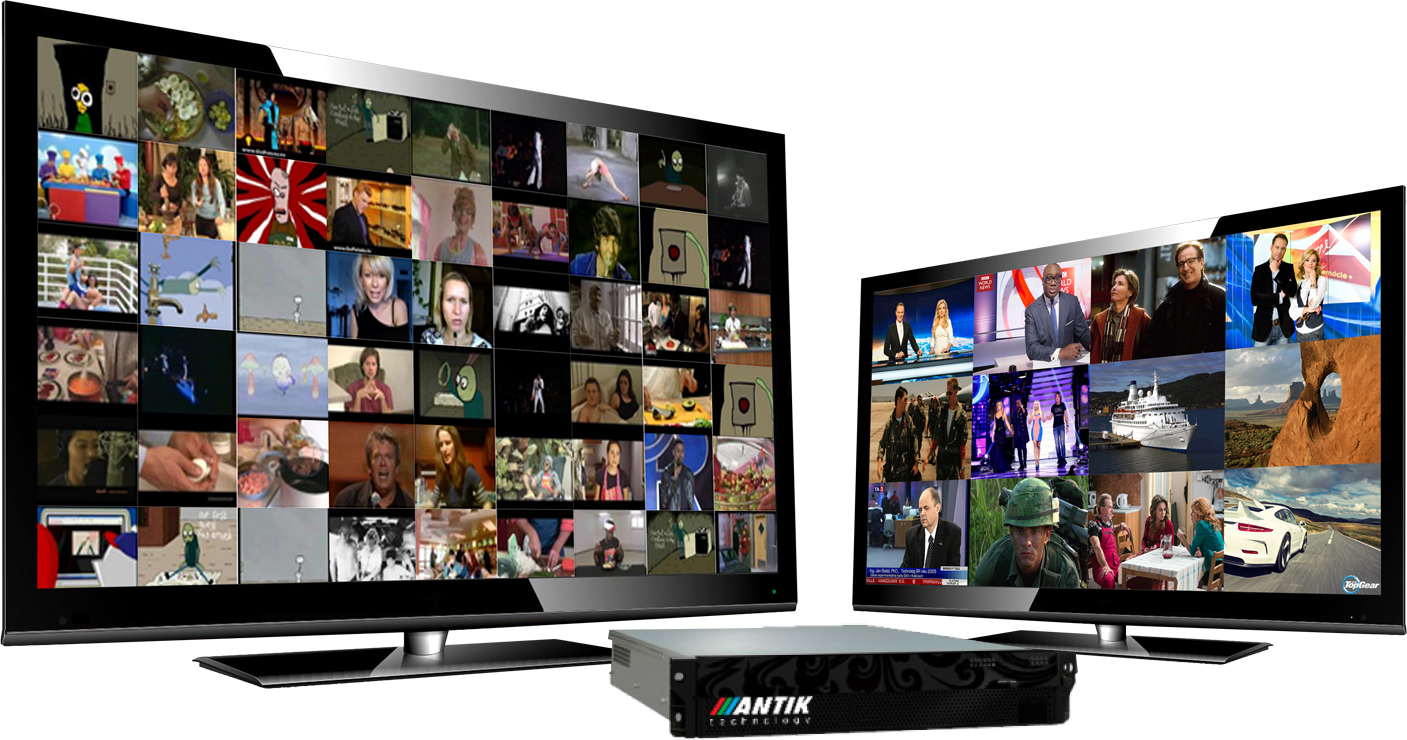

The Antik Multiview monitoring room can receive TSoverIP stream via Ethernet adapter in real time, then decode and display them. It can also monitor audio and video alarms, display monitoring results on monitoring wall.

The Antik Multiview monitoring room is suitable for various types of streaming media IP protocol. It can monitor audio and video alarms, display monitoring results on monitoring wall, which can provide the most effective broadcasting quality guarantee for IPTV/OTT. It supports most of the audio and video coding formats. The Antik Multiview imonitoring room has flexible and convenient layout and configuration function, more suitable for all kinds of application scenes, and it is using GPU decoding technology, greatly improve the decoding efficiency.

KEY FEATURES

• Dual output resolution up to 1920 x 1080
• Video decoding: MPEG-1, MPEG-2, MPEG-4, H.264, H.265, AVS/AVS+
• Audio decoding: MPEG1, MPEG2, MPEG2 AAC, MPEG4 AAC, MPEG4 HE-AAC, AC-3, Dolby 5.1, DRA
• IP source: UDP, RTSP, RTMP, HTTP, HLS
• Resolution: SD, HD
• Detections: Freeze frame , black , color bar , audio loss, video loss, loudness
• Alarm: ① OSD(on-screen visual alarm )② Alert tone ③Database records ④SNMP traps
• Log: ①Alarm log storage ② Query by time/ program name /error type
• Round-robin;
• Audio waveform spectrum;
• Layout tool ：
  • Provide templates for quick launch
  • Customization template with which customer could draw rectangles flexibly
  • Support both analog and digital clock
  • Support GIF picture and customized text
  • Support main TV wall and secondary TV wall
• Encode: Support single program encode output and full screen encoding
                 (Video：352*288 、720*576、1280*720 、 1920*1080 Audio：AAC MP3)

Performance

BOM

• CPU: 17-7700, 3.60GHz
• Memory: 16G
• Ethernet: gigaE NIC port x 2
• Output: HDMI*2
• OS: Windows10 Enterprise X64
• CPU: 60% - 70%

Source counted as:

• MPEG-2 SD:        3.5 Mbps          720*576
• MPEG-2 HD:        18 Mbps        1920*1080
• H.264 SH               2 Mbps           720*576
• H.264 HD:             8 Mbps         1920*1080
• H.265 4K             30 Mbps         3840*2160

OTHER FEATURES

• Web based control
• Layout tool provide templates for quick launch, also customization template with which customer could draw rectangles flexibly
• Support both Analog and digital Clock
• Support GIF picture and customized TEXT
• Support main TV wall and secondary TV wall
• Support round-robin
• Multiple rotating mosaic screens

     See how all IPTV servers correlate
